The next generation of Acoustic Tomography Systems

Acoustic Tomography (AT) is proposed as a robust solution to monitor rivers, estuaries, seas and oceans, lakes, and dam reservoirs, as well as irrigation channels or laboratory flumes. Measurement of aquatic bodies was a permanent challenge in

Get Started

Applications

you can see 12 applications of our technology

1

Continuous & Real-Time River Monitoring

2

Streamflow Measurement in the Wide Irrigation channels

3

Flood Measurement with High Suspended Sediment Concentration

4

Dam Reservoirs & Lakes Monitoring

5

Tidal Current Measurement in Estuaries

6

Tidal Inlet/Outlet Measurement in Harbors

7

Current Measurement around the Structures & Artificial Islands

8

Flow DirectionNelocity Measurement in the Straits for Secure Vessels Navigation

9

Temperature Measurement in Aquatic Farms

10

Thermal Pollution Monitoring of Coastal Power Plants Outputs

11

Coastal Current Profile Measurement for Locating Energy Harvesting

12

Flow Monitoring Around the Oil/Gas Platforms

what is difference?

We Are Offering You The New Generation Of Acoustic Tomography

Central Frequency(kHz)

System monitoring

Measurement Configuration

Transmission interval

Sampling Frequency

Power Consumption

Options

5

, 10

, 30, 80

, 200

OLED

Wi-Fi

> 30 sec

2f

< 3 W

Water Depth Sensor

our work area

Three Classes of Acoustic Tomography Is Now Offered Commercially Based on Your Demanding

CAT

Two types of Coastal Acoustic Tomography (CAT) systems, operating at frequencies of 5 kHz and 10 kHz, are designed for application ranges exceeding 12 km and 6 km, respectively.10:36


FAT

Three Fluvial Acoustic Tomography (FAT) systems—operating at frequencies of 30, 80, and 200 kHz—are designed for maximum ranges of less than 2000 m, 700 m, and 200 m, respectively.10:36

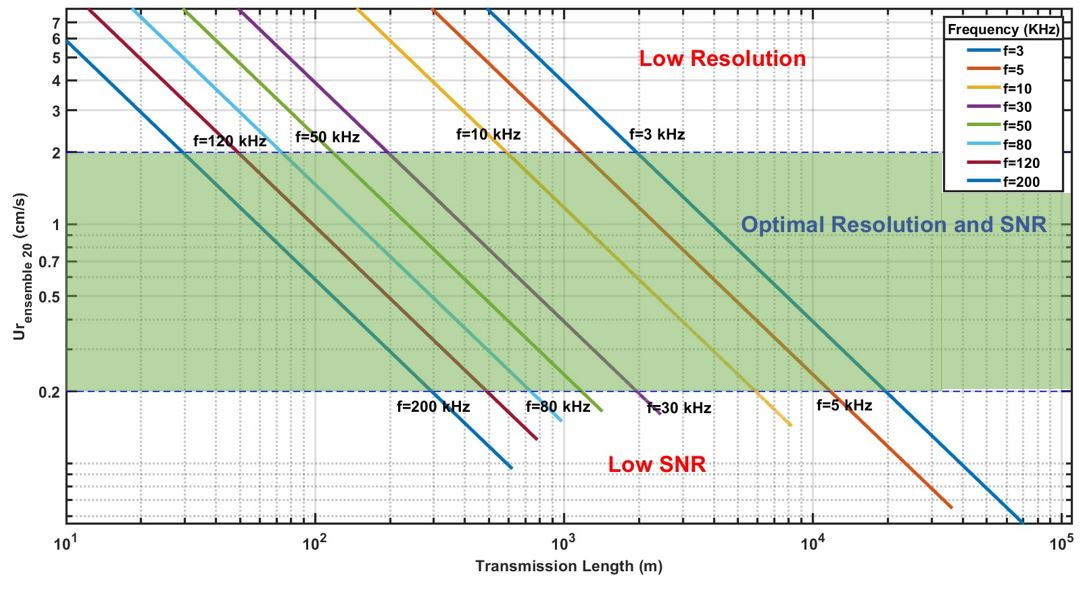

The flow velocity resolution depends on the transmission length (i.e., the distance between transceivers).

read More

WHAT CAN WE MEASURE?

Temperature Measurement in Aquatic Farms
Temperature Measurement in Seas and Oceans
Continuous & Real-Time River Monitoring
Current Measurement around the Structures & Artificial Islands
Flood Measurement with High Suspended Sediment Concentration
Thermal Pollution Monitoring of Coastal Power Plants Outputs
Flow Monitoring Around the Oil/Gas Platforms
Coastal Current Profile Measurement for Locating Energy Harvesting
2-D and 3-D flow Measurement in the Straits and coastal seas for Secure Vessels Navigation

coming soon
Suspended Sediment concentration/ flux in rivers & estuaries

coming soon
2-D and 3-D Tidal/Residual Currents Measurement

coming soon
2-D and 3-D Dam Reservoirs & Lakes Monitoring

coming soon

our Product

For Get Best Performance We Can Offering According Your Desire

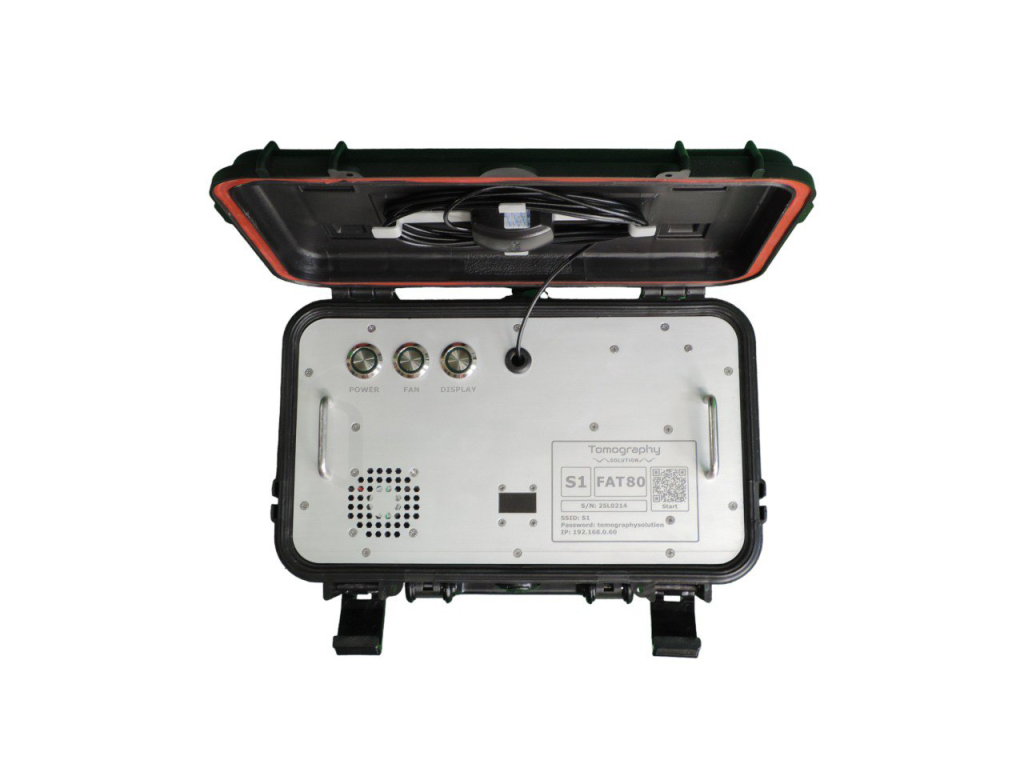

FAT 80

Hardware details

  • Data Transfer: Internet
  • Memory: 16 GB
  • Measurement Configuration: Wi-Fi
  • System monitoring: OLED on device and panel on service
  • Option: Water Depth Sensor
Check It

FAT 50

Hardware details

  • Data Transfer: Internet
  • Memory: 16 GB
  • Measurement Configuration: Wi-Fi
  • System monitoring: OLED on device and panel on service
  • Option: Water Depth Sensor
Check It

FAT 30

Hardware details

  • Data Transfer: Internet
  • Memory: 16 GB
  • Measurement Configuration: Wi-Fi
  • System monitoring: OLED on device and panel on service
  • Option: Water Depth Sensor
Check It
See More

our missions

We Are Traveling Everywhere That Exist Water And Study How Can We Care Our Earth

Qeshm Island

Bushehr Bay 2022

Caspian Sea 2019

Haft Barm Lake 2018

Karaj Dam 2020

Latian Dam 2021
